cobrajet - NEXT-GEN vtol UCAV
CobraJet is a next generation eVTOL Unmanned Combat Aerial Vehicle (UCAV) and shares features with both the 5th gen Lockheed F-35B and F-22. CobraJet can take off and land vertically (VTOL) and is equipped with tri-jets and thrust vectoring nozzles to give it superior maneuverability. CobraJet is Patent-Pending Title: " Next-Gen Unmanned Combat Aerial Vehicle" and is armed with advanced air-to-air munitions loaded in its weapons bay and can neutralize hostile drones and then return to its base to rearm and pursue hostile drones again. CobraJet can be armed with air-to-surface munitions for strike missions against unmanned ground or unmanned surface vehicles. CobraJet also has Intelligence, Surveillance, Target Acquisition and Reconnaissance (ISTAR) capability.
VTOL
CobraJet is vertical take off and landing "eVTOL" and is capable of taking off and landing in areas (deck, grass, dirt, etc.) minimizing the space required for operation. CobraJet can also hover for short periods of time and returns to base to rearm with weapons and recharge its batteries
AUTONOMOUS DETECTION, IDENTIFICATION & TRACKING
- CobraJet can with state of the art AI-enabled computer vision autonomously detect, identify using Artificial Intelligence Visual Identification (AIVI), and expanded target dataset
- CobraJet interceptors are trained in an AI-generated 3D virtual environment to increase situational awareness
- AIVI lightens the load of the operator and at the same time provides faster than human reaction times.
- AIVI also reduces the chances of "friendly fire".

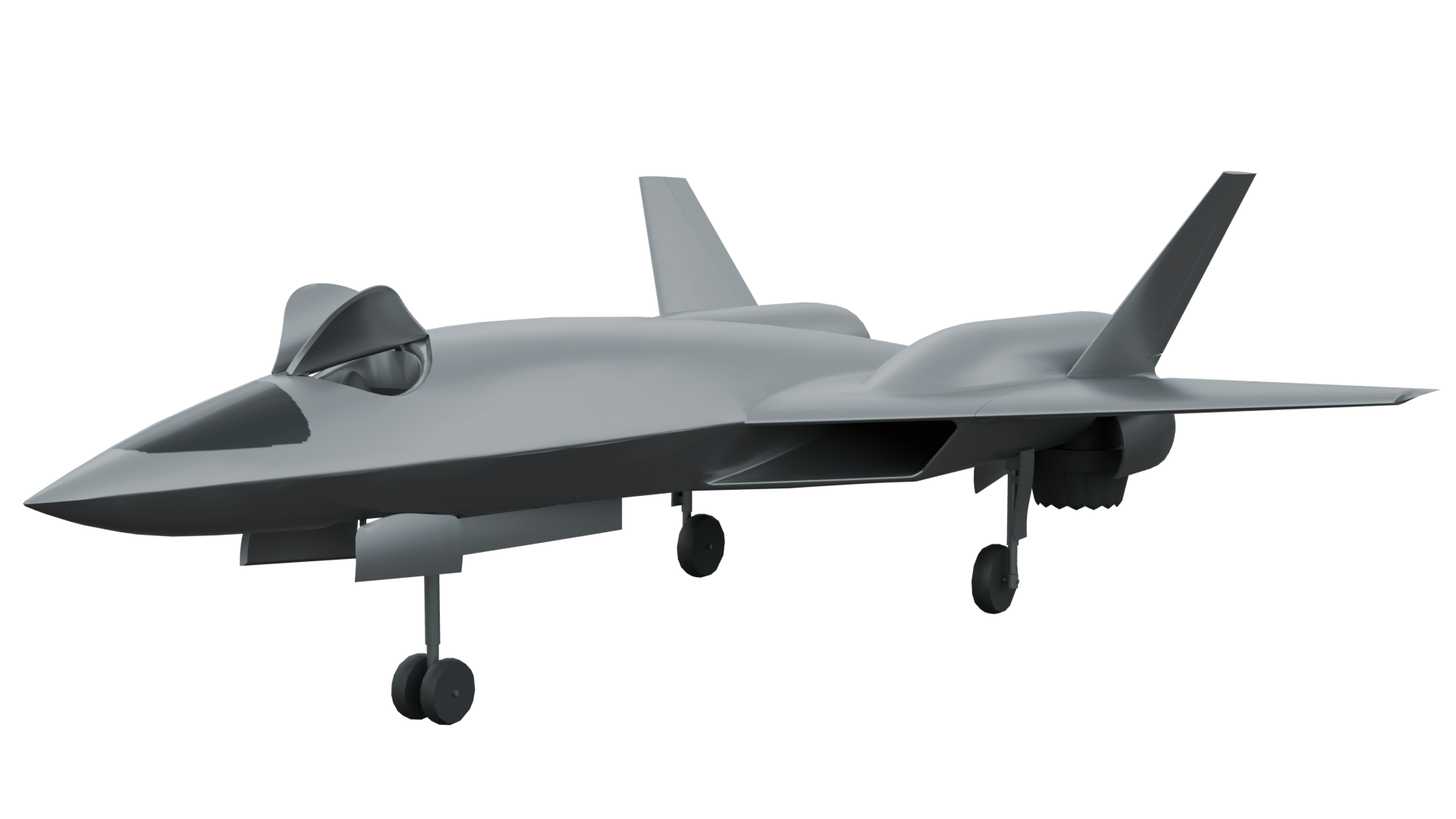

I’ CobraJet VTOL with Dual Rear Swivel Nozzles
CobraJet top view with trijets
- COBRAJET SPECIFICATIONS
- Light-weight carbon fiber monocoque airframe
- AI-assisted avionics with mission control operating system for mobile command and control
- Commercial off-the-shelf (COTS) components for faster development
- Autopilot equipped with heavy AI computing power provides faster than human reaction times.
- Length - 8.0 ft (2.5 m) Wingspan - 6.8 ft (2.1 m)
- Cruise speed - 90 mph (145 km/hr)
- Maximum speed - 200+ mph (320+ km/hr)
- G-loading - 3 Gs in tight turns - higher in "dogfight mode"
- 20,000 ft ceiling
- Takeoff weight - 78 lbs. (35 kg)
- Maximum payload - 20 lbs. (9 kg)
- Flight time - 30 mins. (Flight times will be longer with updated solid-state batteries)
- Equipped with jam-proof radio and jam-proof GPS receiver for EW environment
- Satellite communication (Starlink/Starshield) optional for extreme EW conditions
- Periodic over-the-air OTA updates
- Customized tri-jet motors for higher performance and low infrared signature
- Ruggedized tri-jet motors for harsh (sand, salt water, dust) environments
- Patented and Patent-Pending advanced air-to-air weapons
- Highly maneuverable with thrust-vectoring swivel nozzles
- Stealthy shape with low-profile weapons bay and minimized cockpit for reduced radar cross section
- Day/night operation with EO/IR cameras and black airframe option for nighttime operation
- Equipped with laser range finder and laser designator for combat missions
CobraJet bottom view in stealth mode
